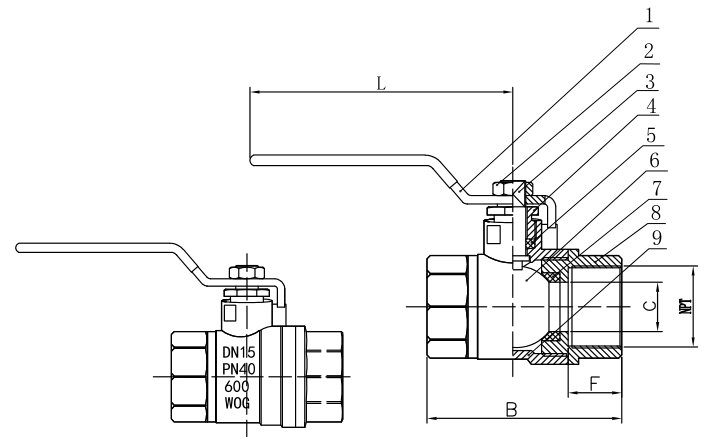

No. | Components | Material | NPT | B(mm) | C(mm) | F(mm) | L(mm) |
| 1 | Handle | Steel | 1/2" | 52.5 | 15 | 13.5 | 94 |
| 2 | Nut | Steel | 3/4" | 58 | 20 | 14 | 94 |
| 3 | Stem | Hpb57-3 | 1" | 64.5 | 25 | 16.8 | 113 |
| 4 | Gland nut | Hpb57-3 | 1-1/4" | 82.5 | 32 | 17 | 125 |
| 5 | Stem Packing | PTFE | 1-1/2" | 96 | 40 | 17 | 142 |
| 6 | Ball | Hpb57-3 | 2" | 104 | 50 | 18 | 150 |
| 7 | Seat | PTFE | 2-1/2" | 130.5 | 64 | 23 | 245 |
| 8 | Bonnet | Hpb57-3 | 3" | 160.5 | 79 | 26.5 | 245 |
| 9 | Body | Hpb57-3 | 4" | 184 | 99 | 29 | 285 |
